SoftTie DL 11/340
Product number:
21134-1SW
EAN:
90 05584 21310 6
Weight:
0.09 kg
Product information "SoftTie DL 11/340"

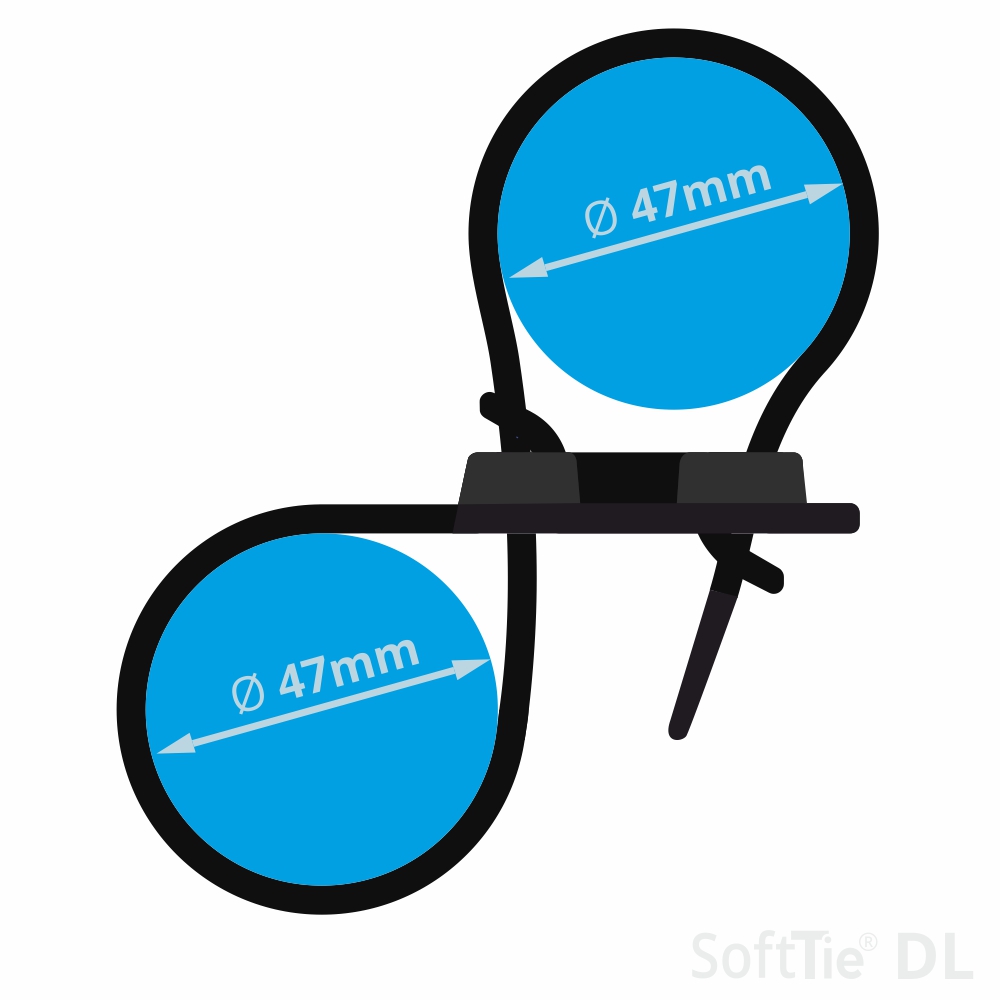

- Ideal for connecting parallel cables.
- The SoftTIE can be reused at any time.
- Highly elastic and extremely tear-resistant material.
- Damping material properties for moving applications.
| Bundle diameter (max): | 90mm |
|---|---|
| Elongation at break: | 400% |
| Fire behavior: | UL 94 HB |
| Holding force (max): | 125N |

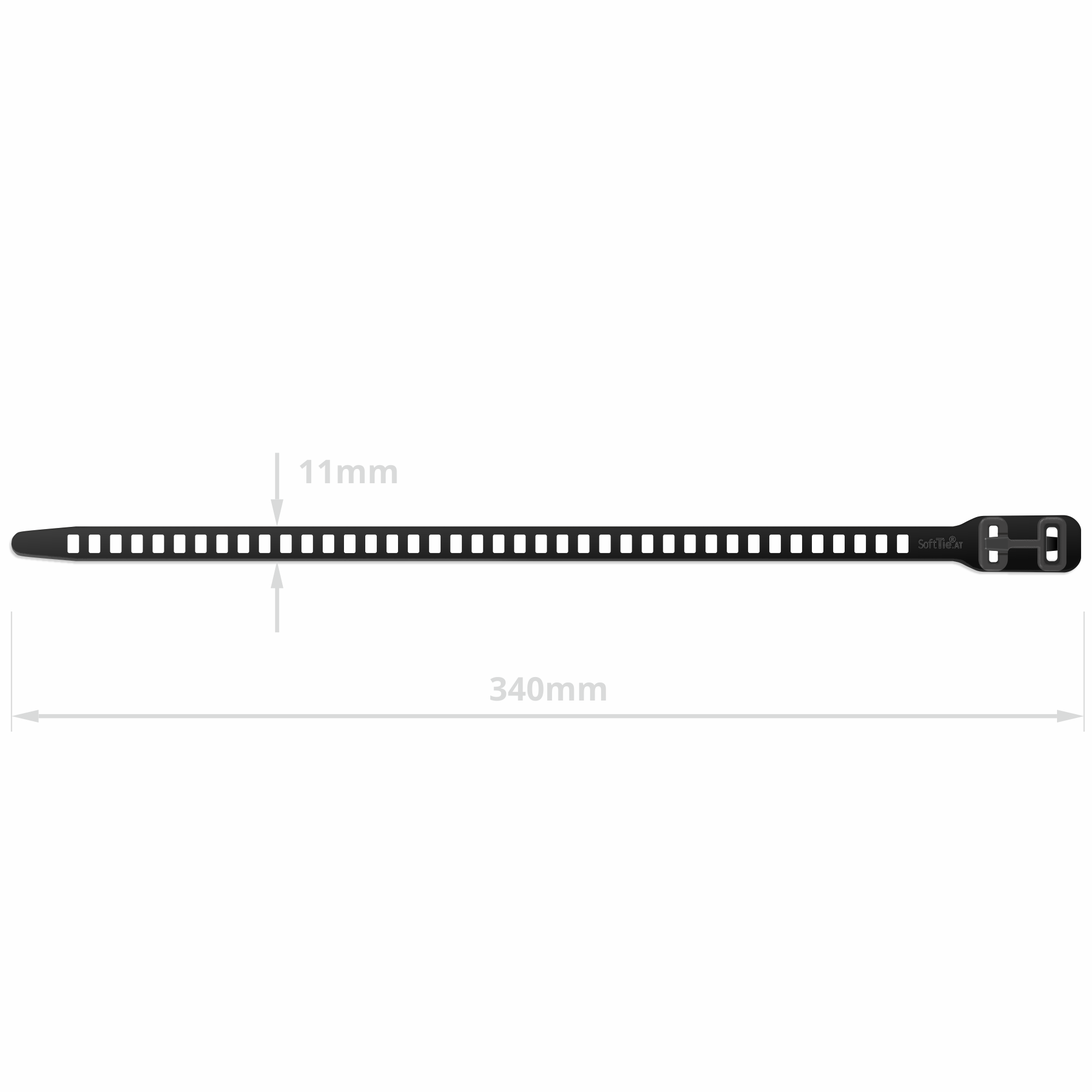

| Length: | 340mm |
| Lock type: | DoubleLock |
| Material: | TPU |
| Operating temperatur: | -20°C up to +85°C |
| Reusable: | yes |
| UV-resistant: | yes |
| Weight: | 8.5g |
| Width: | 11mm |
Easy to use
Step 1
Place the SoftTIE DL around the desired object and then guide the band through the first opening. Tighten the end of the strap until the SoftTIE DL is secure.
Step 2
Now loop around the second object and then guide the band through the remaining opening.
Reuse
To open the SoftTIE DL, bend the tab and guide it past the locking tab. To fully open, fold the clasp and thread the ribbon through the opening.
